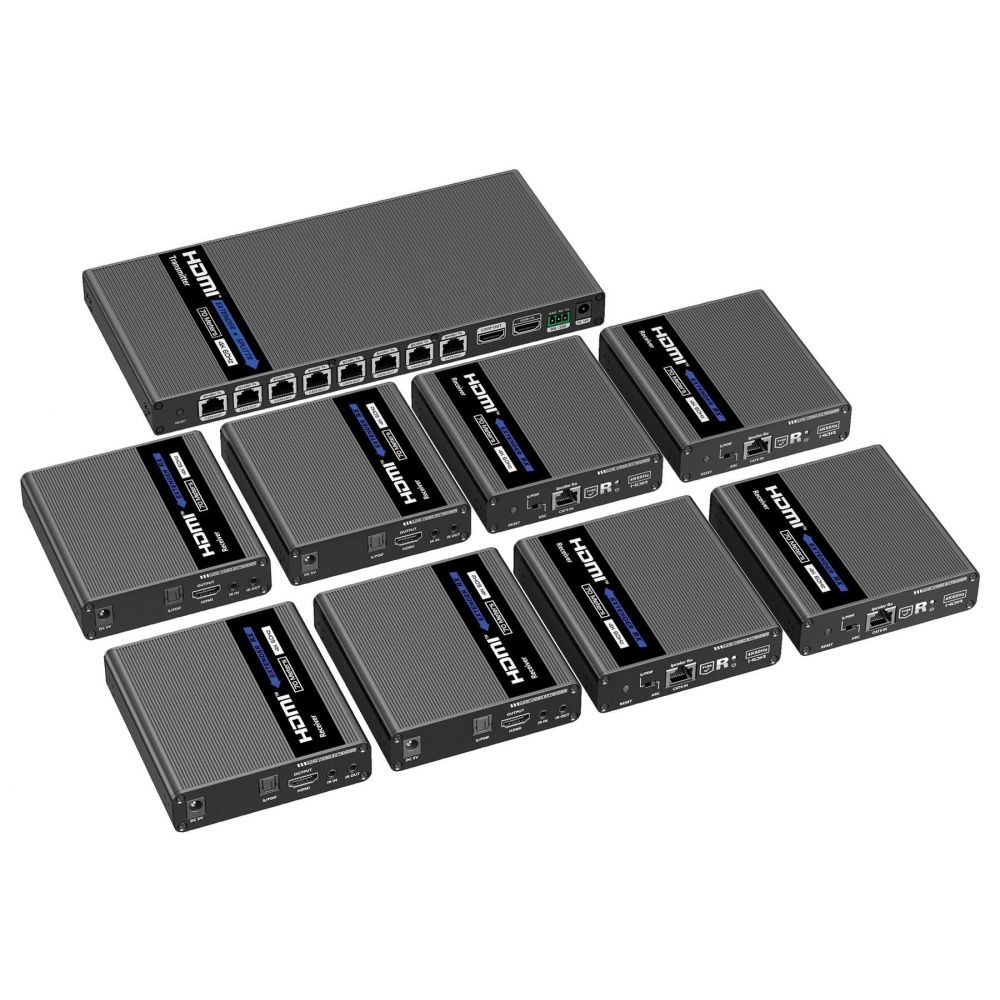

8 Port HDMI Splitter 1×8 4K 60Hz HDMI Video Splitter 1 In 8 out HDMI Distributor

Comprehensive AV distribution solution that splits and extends a 4K HDMI source over standard network cable for up to eight identical outputs. Visually lossless image compression with ipcolor IMAGE standard, provides superior results when compared with other compression technologies.The extender provides a HDMI loop display port as well as bi-directional IR for convenient control at either location. Suitable for commercial and educational applications with additional support for RS232 control allows for integration into professional systems.Transmission distance up to 70m using standard Cat6/7 network cables HDMI loop-through for simultaneous local and remote display Supports resolutions up to 4K UHD @60Hz Dolby Digital 5.1, DTS/DTS-HD and LPCM audio format support EDID passthrough with DIP switches for manual settings Supports RS232 command control Bi-directional IR support (20-60kHz) HDMI 2.0 and HDCP 2.2 compliant Durable metal housings with lightning, surge and ESD protection Transmitter connections: HDMI in/out, 8x RJ45 out, 3.5mm IR in/out, RS232 Receiver connections: HDMI out, RJ45 in, 3.5mm IR in/out Transmitter dimensions (HxWxD): 24x260x120mm Receiver dimensions (HxWxD): 26x106x99mm Supplied with adaptor ‘ears’ for rack mounting Contents Transmitter, 8x receiver, TX AC adaptor, 8x RX AC adaptor, IR extender, IR receiver, RS232 terminal block, mounting kit and user guide
