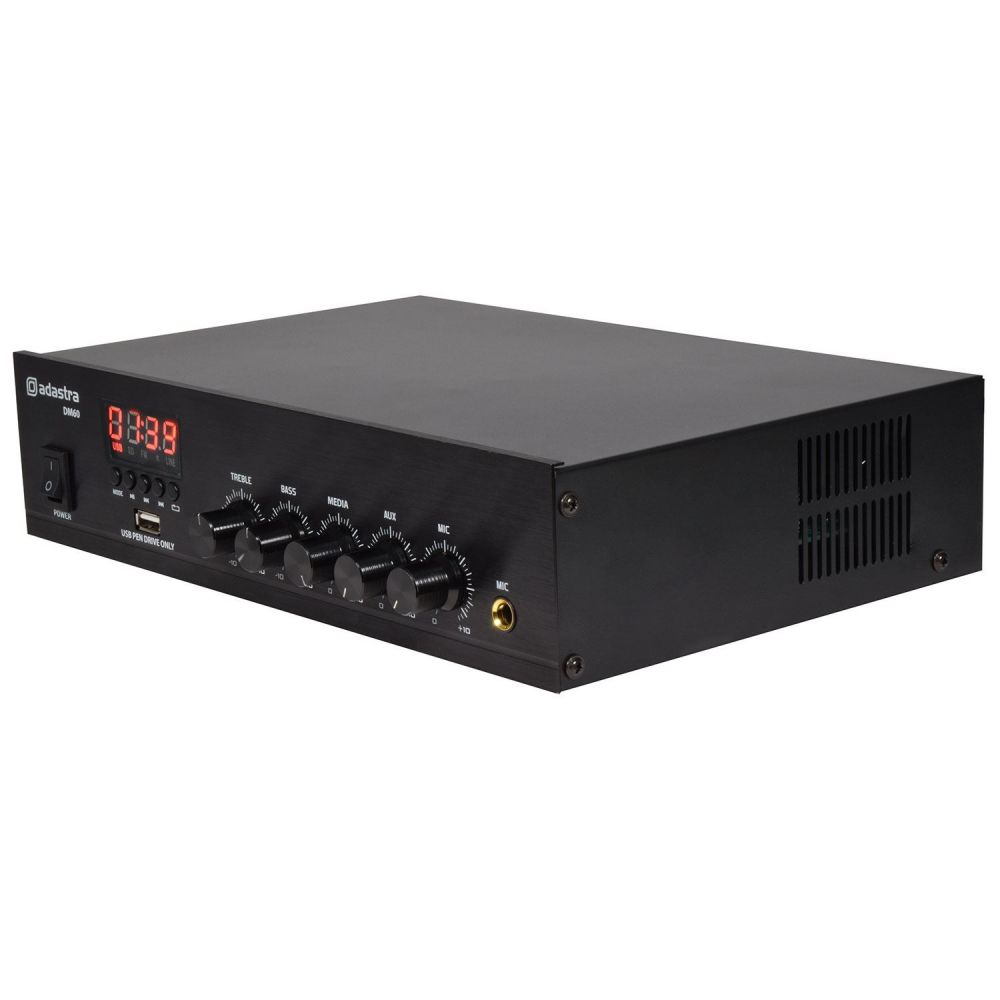

DM-Series Mixer-Amp with USB/FM and Bluetooth
100V line mixer-amp with digital amplifier in a compact housing. Onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.
PRODUCT FEATURES:
Built-in USB/FM media player Bluetooth connectivity Suitable for 100V or 4-16 Ohm speakers
SPECIFICATION:
Power supply 230Vac, 50Hz (IEC) Audio source USB player, FM tuner and Bluetooth receiver Bluetooth version 2.1 Controls Treble, Bass, MP3, Aux, Mic Microphone input 6.3mm jack (unbalanced) Line input 2 x RCA (summed to mono) Line output 2 x RCA Speaker outputs COM, 100V and 4-16 Ohms (spring terminals) Antenna connection Spring terminal Dimensions 280 x 205 x 67mm Output power 40Wrms Weight 1.74kg
