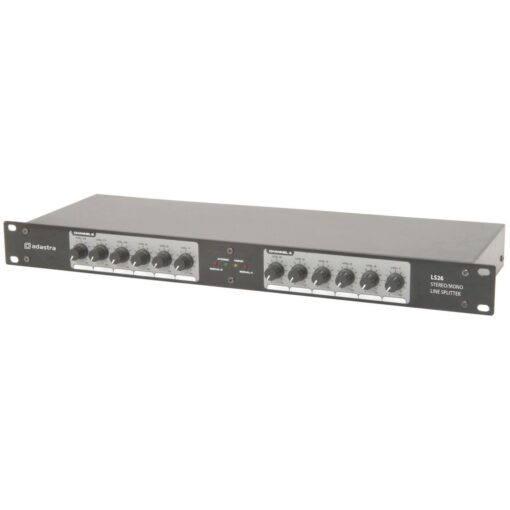

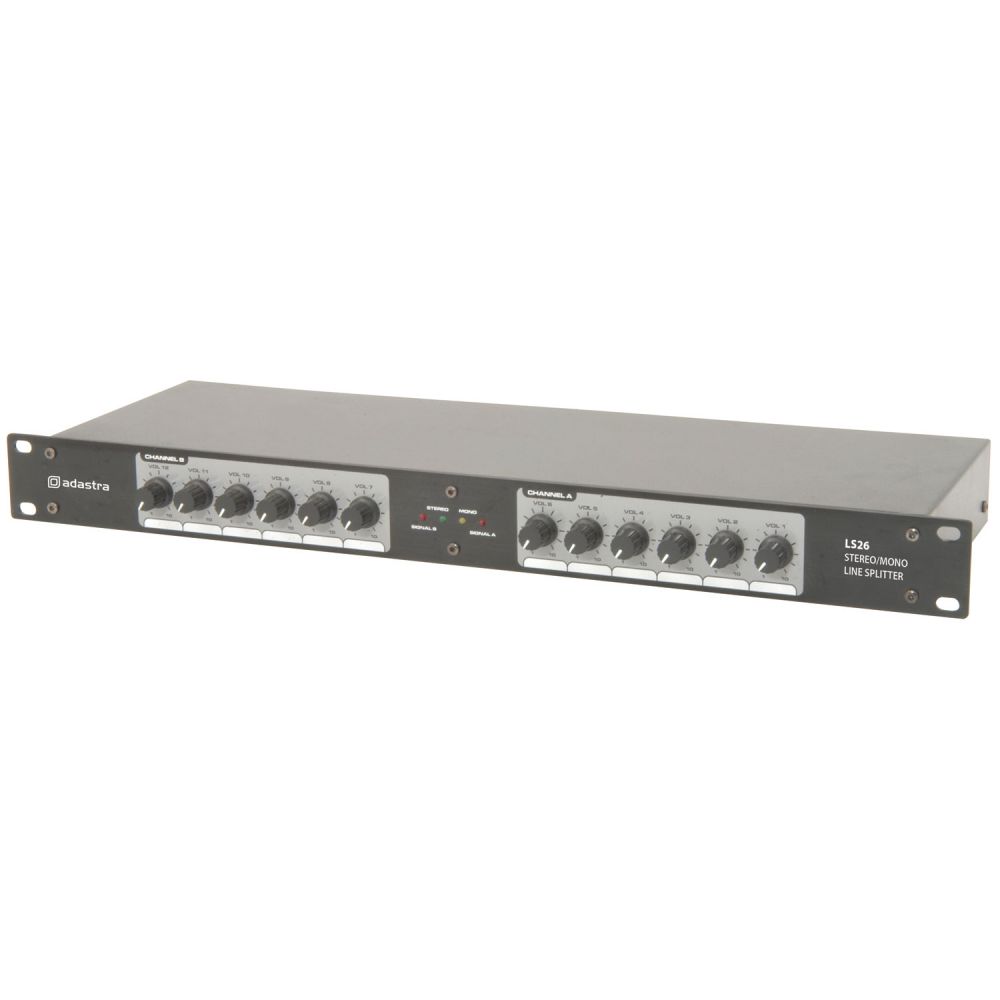

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.
– Up to 12 outputs from 1 or 2 inputs
– Individual volume control for each output
– Input peak LEDs
SPECIFICATION:
* Power supply 115/230Vac, 50/60Hz (IEC)
* Inputs A & B, (6.3mm jack)
* Outputs 1 – 6 & 7 – 12 (6.3mm jack)
* Input impedance 20k Ohms
* Output impedance 220 Ohms
* Frequency response 20Hz – 20kHz, +0/-1dB
* Signal to noise ratio >95dB
* THD <0.008%
* Dimensions 483 x 44 x 170mm
* Weight 2.0kg
