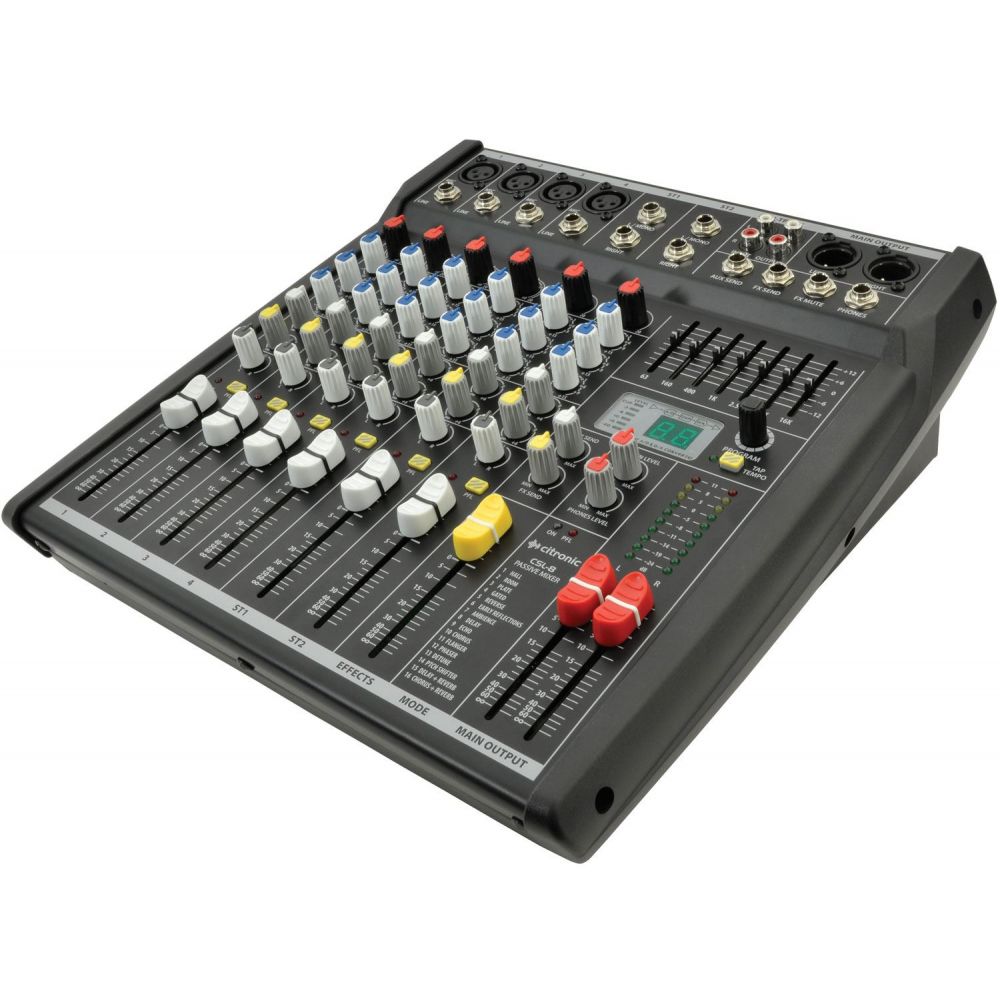

Citronic CSL-8 Compact Mixing Console with Effects – 8 Inputs

CSL Series Compact Mixing Consoles with DSPCompact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.DetailsPower supply 230Vac, 50Hz (IEC)Phantom power +48V (XLR inputs)Power consumption 25WFuse T1ALInput level +24dBuOutput level : line +26dBuFrequency response 20Hz-30kHz (0.5dB)CMRR >74dB (mic 1kHz)THD +N 85dB (fader mute), >82dB (channel)Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)EQ: high 12kHz ±15dB shelvingEQ: mid 2.5kHz ±15dB band passEQ: low 80Hz ±15dB shelvingInput impedance : mic (balanced) 2k OhmsInput impedance : line (balanced) 10k OhmsSensitivity : mic -60 to +14dBuSensitivity : line -40 to +14dBu2-track 2 x RCA in & out (-2dBu)Effects 16 program DSP (24-bit sigma-delta, 40kHz)Output impedance
