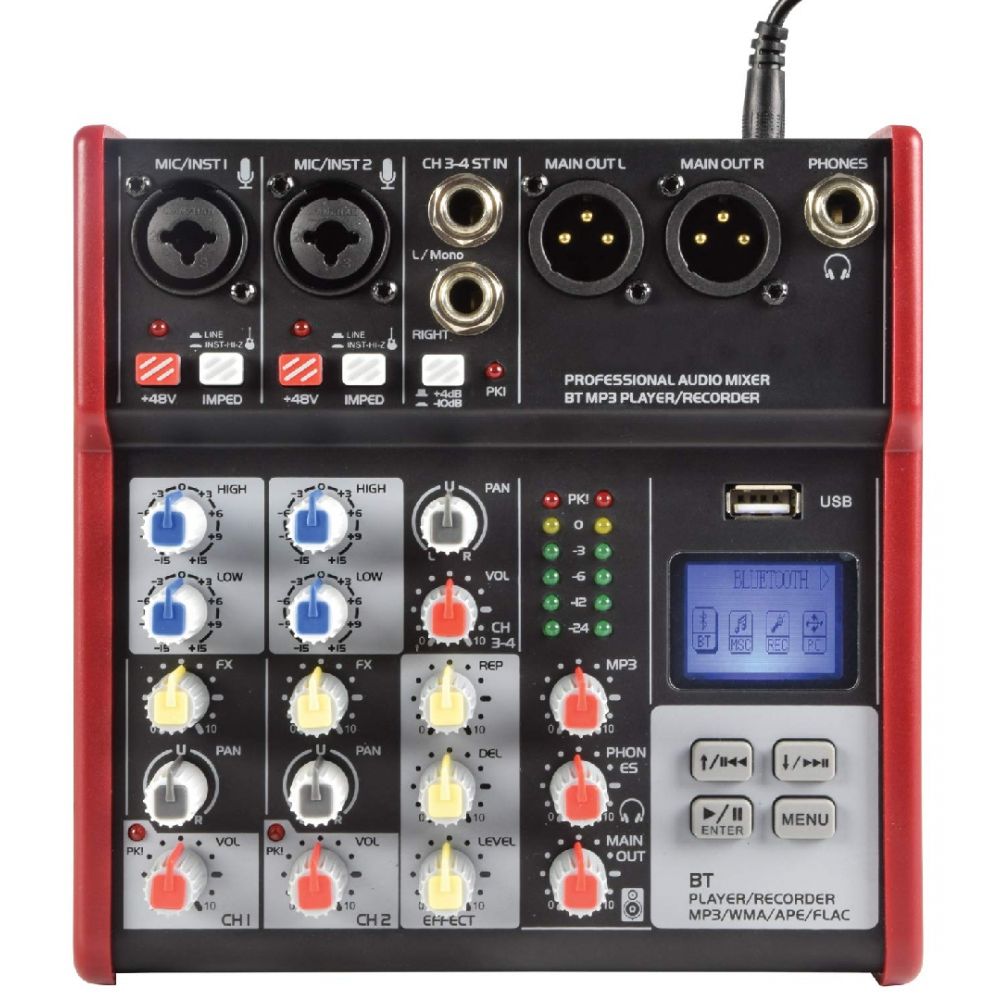

Compact format audio mixer with 2 or 4 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR.Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via Bluetooth for wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.PRODUCT FEATURES:Integral USB multi-format audio playerBluetooth connectivityDigital delay effect for vocals or instrumentsVery low noise operation for high quality studio or live performancesIndividually switchable +48V phantom powerBuilt in record functionSupplied with DC power adaptorSPECIFICATION:Power supply 5Vdc 1A (adaptor included)Power consumption max. 5WGain -14 to +40dBEQ: high? 15dB @ 80HzEQ: low? 15dB @ 12kHzPhantom power +48V individually switchable (XLR inputs only)Input impedance : mic 2k OhmsInput impedance : instrument 1M OhmsInput impedance : line 20k OhmsAudio source Internal USB player/recorder & Bluetooth receiverAudio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)Bluetooth version 2.1 + EDRFrequency response 20Hz – 20kHz (?0.5B)THD +N <0.03% @ 1kHzDynamic range 102dBCrosstalk : stereo 92dBOutput Left + Right balanced XLROutput impedance 120 OhmsMax. output level 3VrmsInputs2 x combo XLR/jack + stereo jackDimensions166 x 165 x 66mmWeight0.89kg
Box Contains
1 x CSM series compact mixer ? 1 x 5Vdc power adaptor
