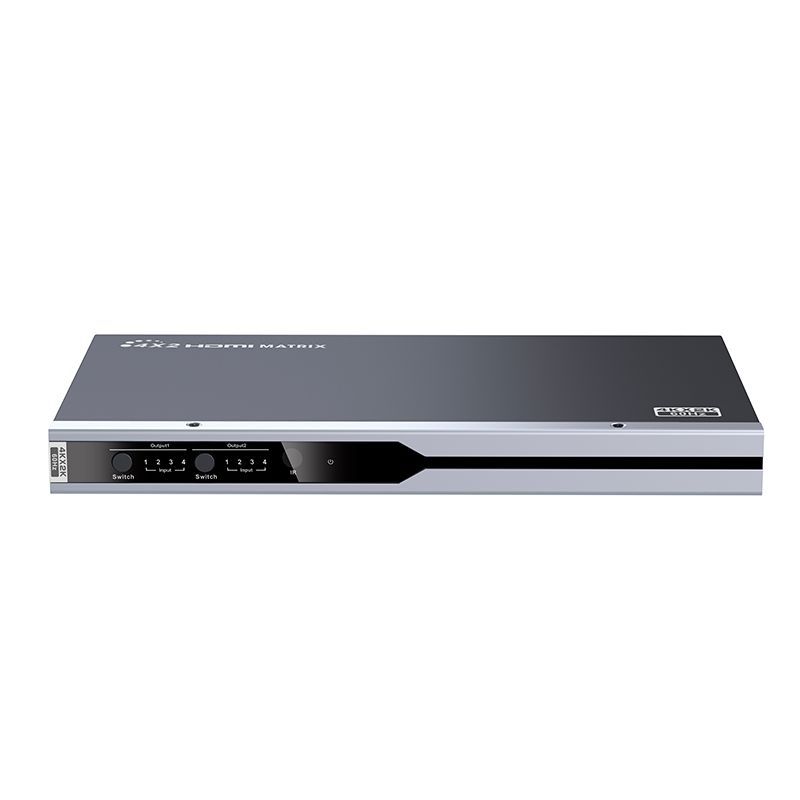

Ex-Pro® AV-Pro 179005 4×2 Port HDMI Matrix Switch/Splitter [4 Input 2 Output] – HDMI v2.0 Full UHD SUPPORT – [Distribute one of 4 HDMI sources to either of 2 displays or show same on all connected displays]. The Ex-Pro 2K4K 4×2 HDMI Matrix Switch comes with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of the 4 sources to either of the connected 2 displays or it can work as a splitter to show the same source on 2 displays simultaneously. Full UHD 2K4K, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@25/30/60Hz/3D YUV 4:4:4. HDCP V2.2 Compliant suppors all UHD sevices such as Sky Q, Virgin V etc. Audio format support DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD. Switch easily between multiple HDMI sources via remote control or via buttons on the unit. With inner IR receiver to enlarge IR remote control signal, also supports RS232 Control. Multiple Switching modes: IR remote control, operate manually or operate via Integrated RS232 port. Maximum transmission distance: 10 meters by 28AWG cable; 15 meters by 26AWG cable. (for further distance, use of HDMI extender is optional). Compact unit L 283.50mm x W 164.75mmx H 27.20mm with LED light indication. Powered by UK Power supply (included). 1 Year Ex-Pro Manufacture Defect Warranty & Customer support, RoHS compliant, FCC and CE approved.Whats in the Box ? 1 x Ex-Pro® AV-Pro 4×2 Port UHD HDMI Matrix Switch/Splitter [4 Input 2 Output]. 1 x 5v UK 3 Pin AC Power Supply. 1 x Remote Control. 1 x Manual. 1 x RS232 Control software. Boxed packaging. We recommend the use of Ex-Pro® AV-Pro v2.0 2K4K HDMI cables with this device.
Ex-Pro® AV-Pro 4 x 2 Port 2K4K UHD HDMI V2.0 @60hz HDCP 2.2 True Matrix Switch/Splitter. HDMI 2.0, Full compatible with HDCP2.2 – supports all UHD Services. [Ensure all connected devices also support HDCP 2.2 – EG Your TV/Amp etc..]The Ex-Pro 4×2 179005 HDMI Matrix Switch comes with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of the 4 sources to either of the connected 2 displays or it can work as a splitter to show the same source on 2 displays simultaneously.Supported resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@25/30/60Hz/3D HDCP V2.2 Compliant. Supported Audio format DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD. YUV 4:4:4 – 18Gps Transmission.Switch easily between multiple HDMI sources via remote control or via buttons on the unit. With inner IR receiver to enlarge IR remote control signal. Multiple Switching modes: IR remote control, operate manually or operate via RS232 port.Maximum transmission distance: 10 meters by 28AWG cable; 15 meters by 26AWG cable. (for further distances we recommned using Ex-Pro CAT HDMI extenders). Compact unit L 283.50mm x W 164.75mmx H 27.20mm with LED light indication. Powered by UK Power supply (included). 1 Year Ex-Pro Manufacture Defect UK Warranty & Customer support, RoHS compliant, FCC and CE approved.
