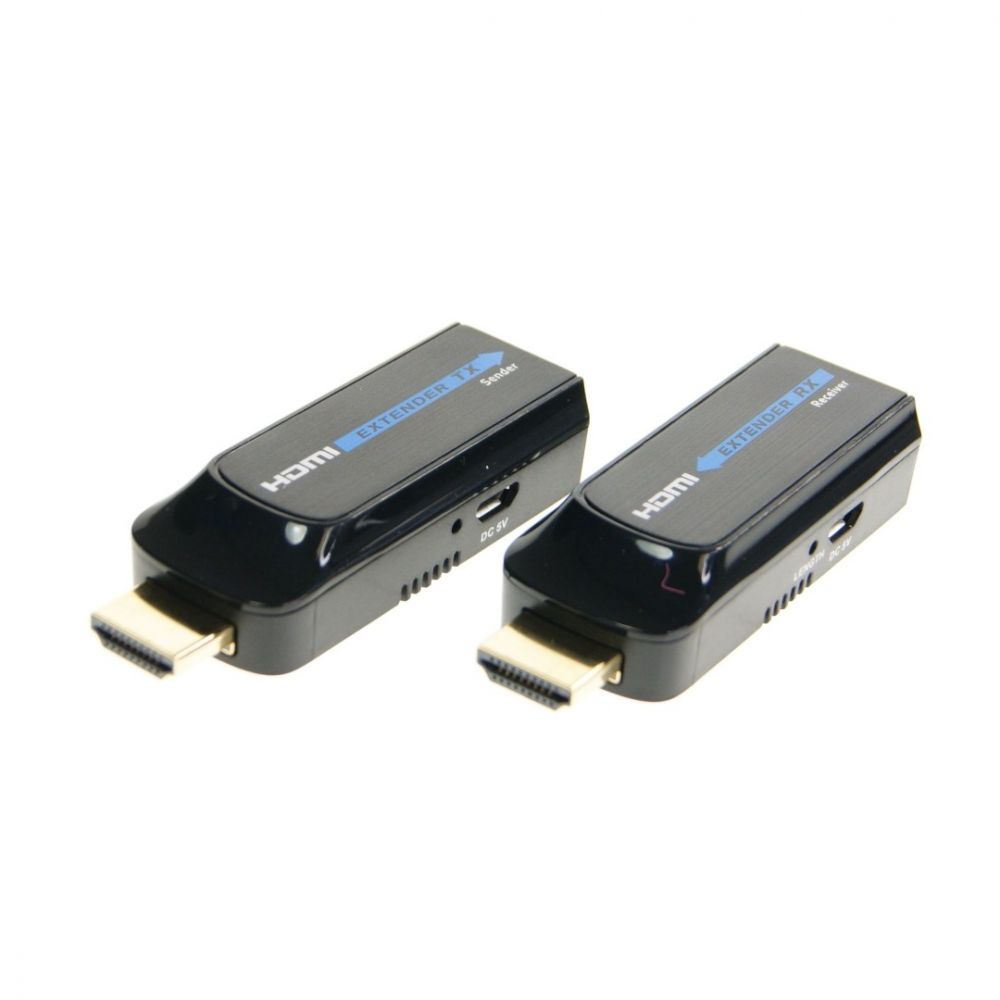

The Ex-Pro Mini Extender extends HDMI AV signals over a single CAT6 / CAT6a / CAT7 Cable upto 50m. Ideal for home, office, Conference, Projectors, Video production, Displays, Café, Stores and more.
The simple micro design allows easy installation behind TV equipment directly into the HDMI port at both sender and receiver ends, powered by USB (Either from the TV USB Power port) or similar USB Power device / Charger). Simple plug and play operation with Zero loss/latency.
[Effortless Transmission] Allows simple transmission of a HDMI 1080p output seamlessly to a TV / HDMI Monitor over 50m CAT6 / CAT6a / CAT7. Needs no software, no special functions.[EASY POWER] Sender and receivers are both USB Powered (Cables included) they can either be powered from your device (EG Laptop USB Port) or in the case of the receiver powered by the TV’s Powered USB port. If powered ports are not available any USB charger will suffice.[INDUSTRY STANDARD] Supports HDMI V1.3, HDCP 1.2, Supports multiple resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz. Supports Stereo Audio Output. Distance TX to RX 50m.[READY TO PLAY] Ready to go plug and play – perfect for home, office, display, in-store, presentations and more.[MINI] Sleek Mini Design TX and RX measuring just 71mm x 25mm x 11mm. Ex-Pro are a UK Company with UK Support. 1 Year Manufacture Defect warranty. CE Approved.
Technical Features
Extends 1080p HDMI upto 50m.
IEEE-568B Standard.
No software is required.
Plug and play.
1/3 of the size of the same specification models.
Automated Cable match function built-in (Tests your cable length for optimum signal).
Full HD 1080p Transmission.
Specifications
HDCP 1.2 Support
Resolutions Supported 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,1080p@50/60Hz
Use Cat6/ Cat6A/ Cat7 upto 50m (Recommended minimum 15m).
USB Power 5v 1amp.
Dimensions Tx/Rx 71mm x 25mm x 115mm
Supports L/R Stereo.
10.2Gbps.
HDMI V1.3
TX/RX 10g
What’s in the Box ?
1 x HDMI Sender.
1 x HDMI Recever
2 x USB Power Cables
1 x Instructions.
