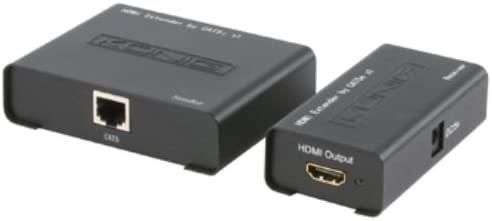

Connections transceiver: 1x input HDMI female, 1x RJ45 output Connections receiver: 1x RJ45 input, 1x output HDMI female Full HD 1080p Resolution: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p High performance up to 1.65Gbps / 165MHz Compatible with Cat5e and Cat6 Built-in equalizer
Specification Input connection: HDMI Number of inputs: 1 Output connection: HDMI Number of outputs: 1 Maximum bandwidth: 165 MHz Maximum transfer rate: 1,65 Gb/s Dimensions: 72x92x24 mm
This HDMI Extender has many features that enable it to perform in a superior manner. Among those
features you will find:
• One pair as a full functional module, no need of setting.
• One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long-distance transmission.
• Follow the standard of IEEE-568B.
• Transmission distance can be up to 50 meters for 1080p using CAT-6 cable.
• Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the
length of the cable.
• Compact size.
• Support highest video resolution 1080p.
• Support 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
• Support 8bit per channel (24bit all channel) deep color.
• Support uncompressed 2 channel audio such as LPCM
