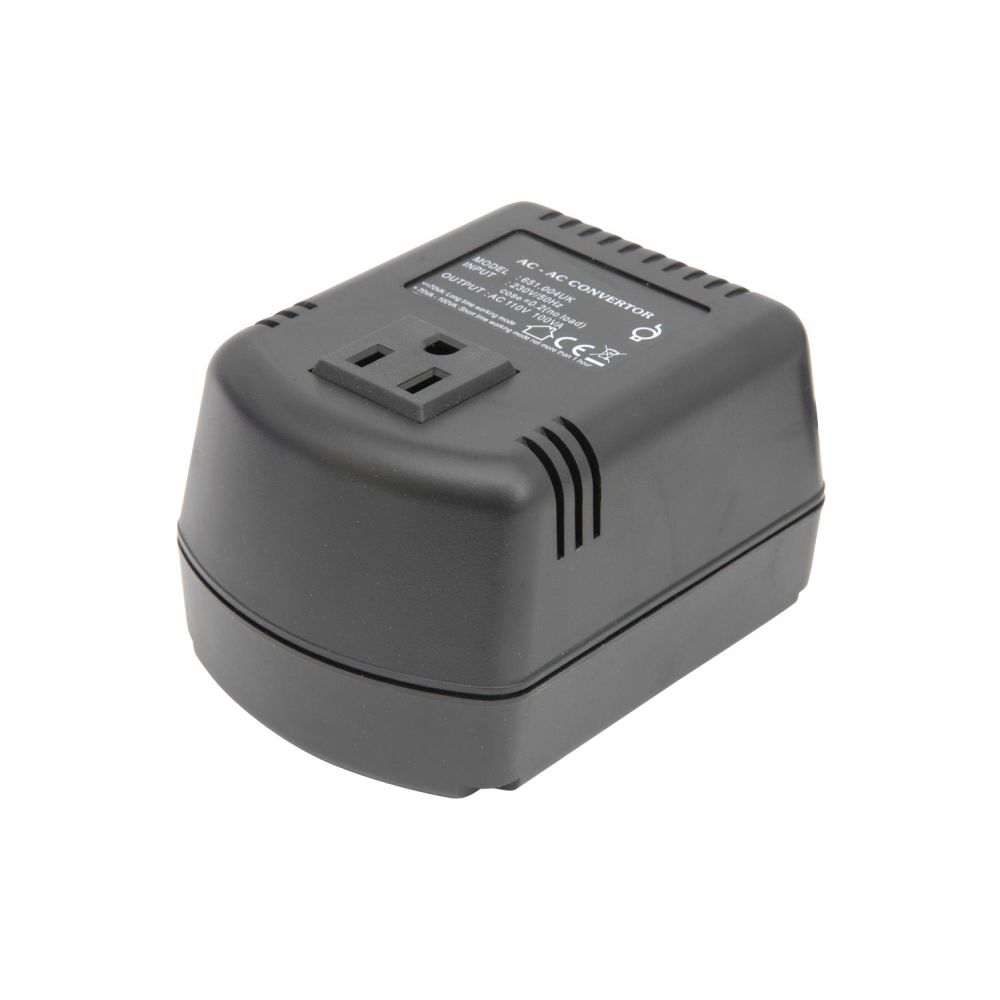

Step-down Voltage Converter 230V – 110V (100W)
A converter that enables a 110 – 120Vac device from the USA to be powered from a 230-240Vac UK mains outlet.
Ideal for use with devices from the US in the UK
that are under 100W, such as electric shavers, laptop chargers and small
LED TV’s Compact and portable design Conforms to BS1363 Not suitable for devices over 100W or with a heating a element i.e. hair dryers, kettles and irons
Power supply
230Vac, 50Hz
Power max.
100W
Cable
1.8m
Output voltage
110Vac
Dimensions
115 x 84 x 69mm
Weight
911g
(UK version) Step down voltage converter 230V – 110V 100W
A converter that enables a 110 – 120Vac device from the USA to be powered from a 230-240Vac UK mains outlet.
Note: The output voltage is half the input voltage
Note :- Maximum Draw 100w (Unit will not exceed this wattage, please check your device)
You can calculate the power rating by multiplying the current (Amps) by
the voltage.
Here are some examples;
Electric shavers 0.05A x 120v = 6VA use USM45
Radios 0.1A x 120v = 12VA use USM45
C.D. Players 0.15A x 120v = 18VA use USM45
Christmas tree lights 0.2A x 120v = 24VA use USM45
Games Console 0.35A x 120v = 36VA use USM100
Televisions vary (check rating) but typically USM300
Computer 5A x 120v = 600VA use USM1000
