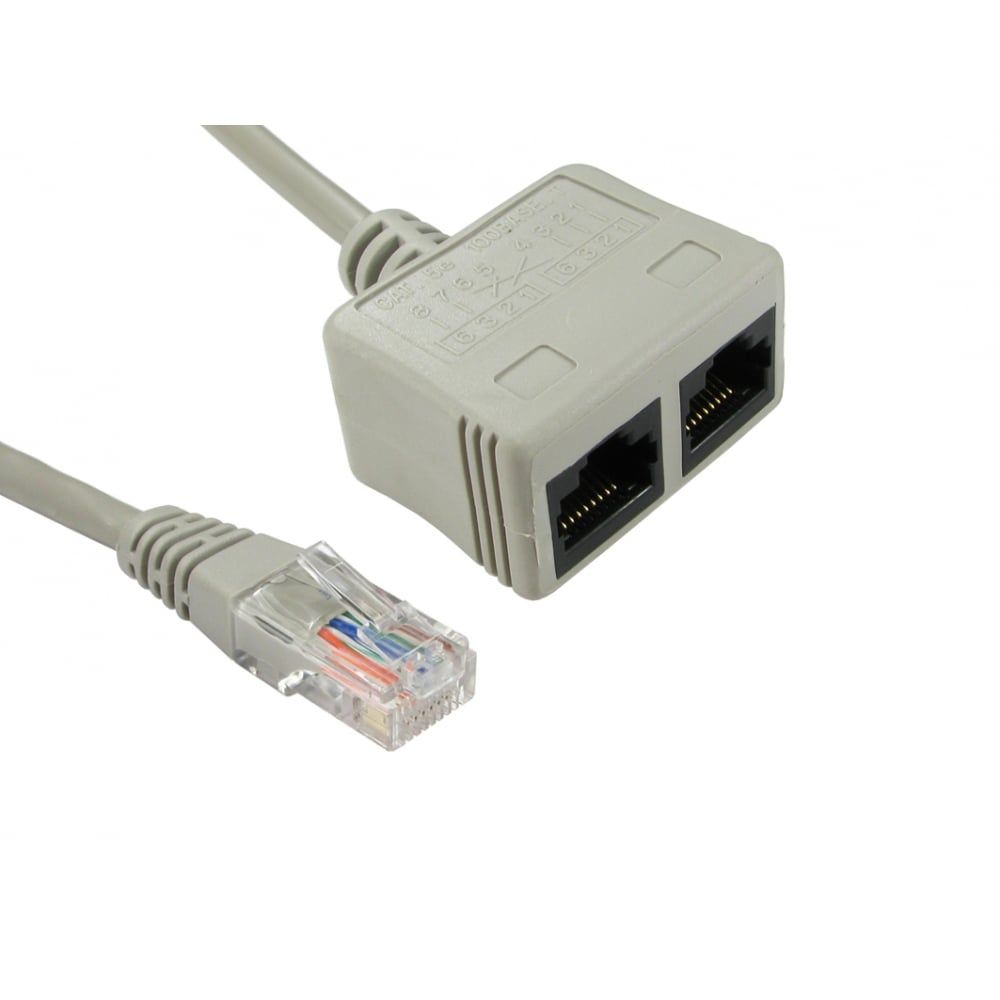

Our RJ-ECON is an economiser cable adapter that carries two connections over a single port and outputs the same two connections to different locations. This is the perfect solution to adding extra ports to your wall sockets. The RJ-ECON only works in pairs and only if they are connected to the same port number. The RJ-ECON is designed for use on data networks only.
Network Cable EconomiserCombines/Divides the data into 2x 2 Twisted Pair SignalsWorks with UTP CAT5E (Not full Duplex)21cm Lead
Set up as follows
2 Devices CAT5 cables into Adapter, producing 1 connection – connect to Wall port in Room / Office
In-office where router exists, connect another Adapter and re-split to 2 cables then connect to Router/Modem/Switch..
They can not be used to split a port on the router to 2 connections for 2 PC’s, only 1 port would work.
