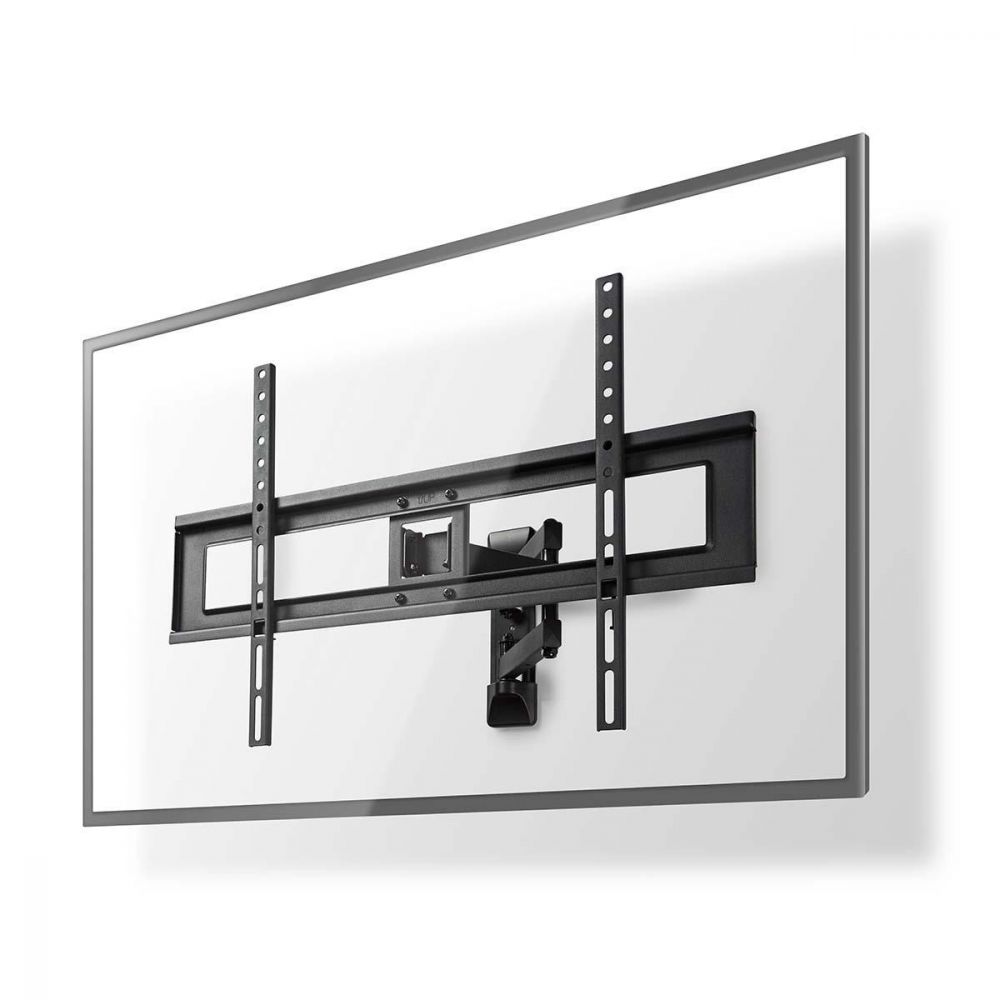

Attach a television to this TV wall mount to be able to tilt, swivel and rotate it. This provides you with great flexibility to adjust the TV as you wish to get that perfect viewing angle under any conditions. Including all required installation materials and a manual to install the TV mount fast and easy.
• Large size mount – fits most TV screens from 37” to 70”.
• Suitable for VESA: 100×100, 200×100, 200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×200, 600×400.
• Strong and durable component parts – max TV load capacity of 25 kg.
• Tilt functionality – 20° tilt range.
• Full motion design – three pivot points for up to 180° rotation and a wall distance of up to 427 mm.
• Up to 4° levelling adjustment – optimise the viewing angle after mounting.
• Included cable management – keep everything organised behind your TV.
ColourBlackMaterialABS
SteelRotatable0-180 °
Cable managementYes
Mounting applicationWall
VESA mounting interfaces400x200
300×300
400×400
600×400
100×100
200×100
200×200
300×200
400×300
600×200
FunctionalityFull Motion
Screen size37-70 ”
Tiltable20 °
Levelling4-4 °
Minimum wall distance79 mm
Height268 mm
Maximum supported screen weight25 kg
Maximum wall distance427 mm
Weight3300 g
Depth93 mm
Width700 mm
Number of screens1 Screen(s)
Number of pivot points3 Pivot point(s)
