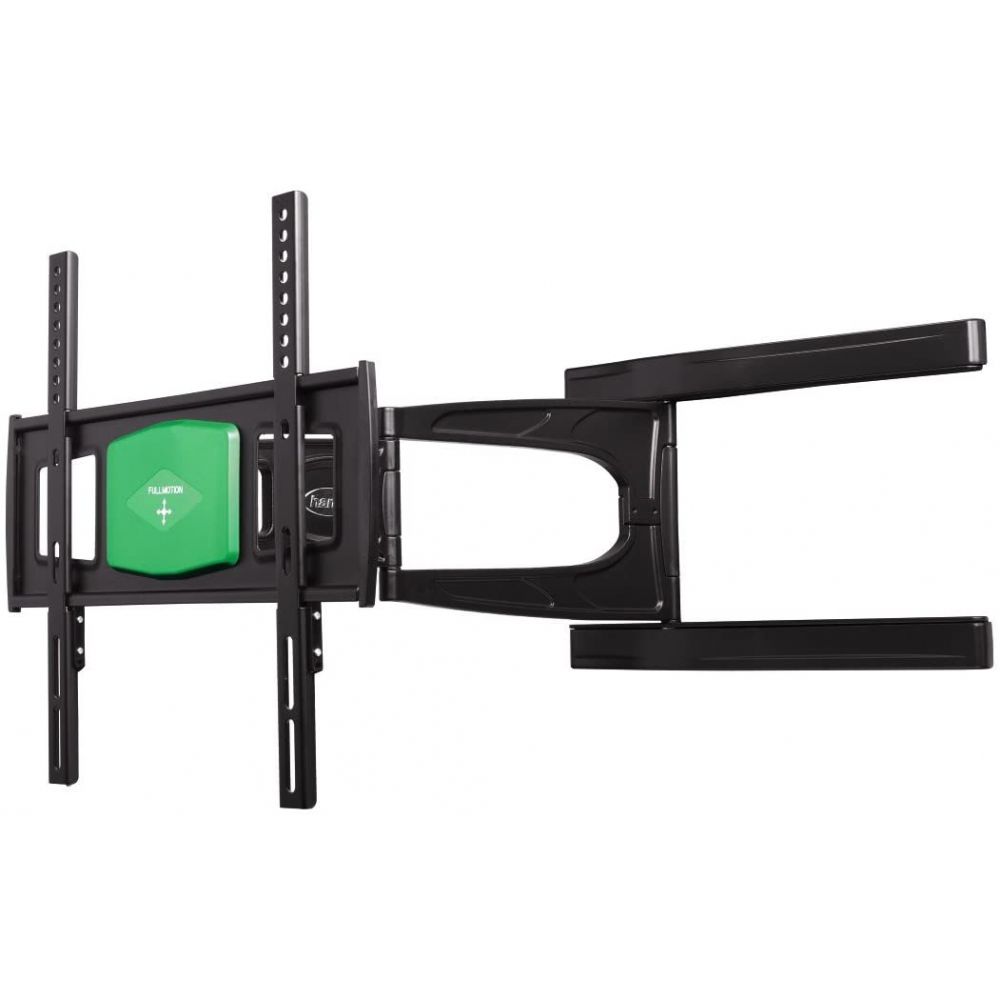

You attach importance to flexibility and want to enjoy films at their best no matter where you are positioned in a room? With its ability to be tilted and swivelled this highly adaptable wall bracket will drastically improve your user potential. Fantastic viewing possibilities are guaranteed!
Extremely flat profile allows modern and compact living space design
Easy-Fix system for simple and fully adjustable orientation of your TV
The cable manager provides organisation and necessary strain relief
If the TV bracket has been mounted slightly at an angle on the wall, the position of the TV can be corrected by a few degrees horizontally
For the installation of flat-screen TVs with a screen size from 81 to 142 cm (32 to 56″)
Especially suited for ultra flat televisions allows optimal positioning of the flat panel display in any room
Supports all VESA standards up to 400 x 400
Up to +5/-15° continuous tilt
Swivel range on 3 hinges: up to 180°
Adapts to the individual living space situation, can be swivelled by up to 90° to the left and right
Specifications:
Colour: Black
Additional Functions: Cablemanager
Hole Size Attachment: Up to M8
Material: Steel Plate
Maximum Load Capacity: 25 kg
Number of Joints: 3
Projection maximum: 53.8 cm
Projection minimum: 4 cm
Rotation: 5 °
Special Feature: Spirit-level integrated
Swivel Range: 180 °
Tilt +/-: 5 / 15 °
Compatible Screen Dimensions: 81 cm (32″), 84 cm (33″), 86 cm (34″), 89 cm (35″), 91 cm (36″), 94 cm (37″), 97 cm (38″), 99 cm (39″), 102 cm (40″), 104 cm (41″), 107 cm (42″), 109 cm (43″), 112 cm (44″), 114 cm (45″), 117 cm (46″), 119 cm (47″), 122 cm (48″), 123 cm (49″), 127 cm (50″), 129 cm (51″), 132 cm (52″), 137 cm (54″), 140 cm (55″)
VESA Standard: 200 x 200, 200 x 300, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400
Recommended Maximum Screen Size: 142 cm (56″)
Recommended Minimum Screen Size: 81 cm (32″)
Note for Consumers
In addition to the varied installation accessories supplied, we also recommend the following tools for the installation process: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, and spirit level.
The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please source suitable dowels and screws from a specialist retailer.
To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move.
