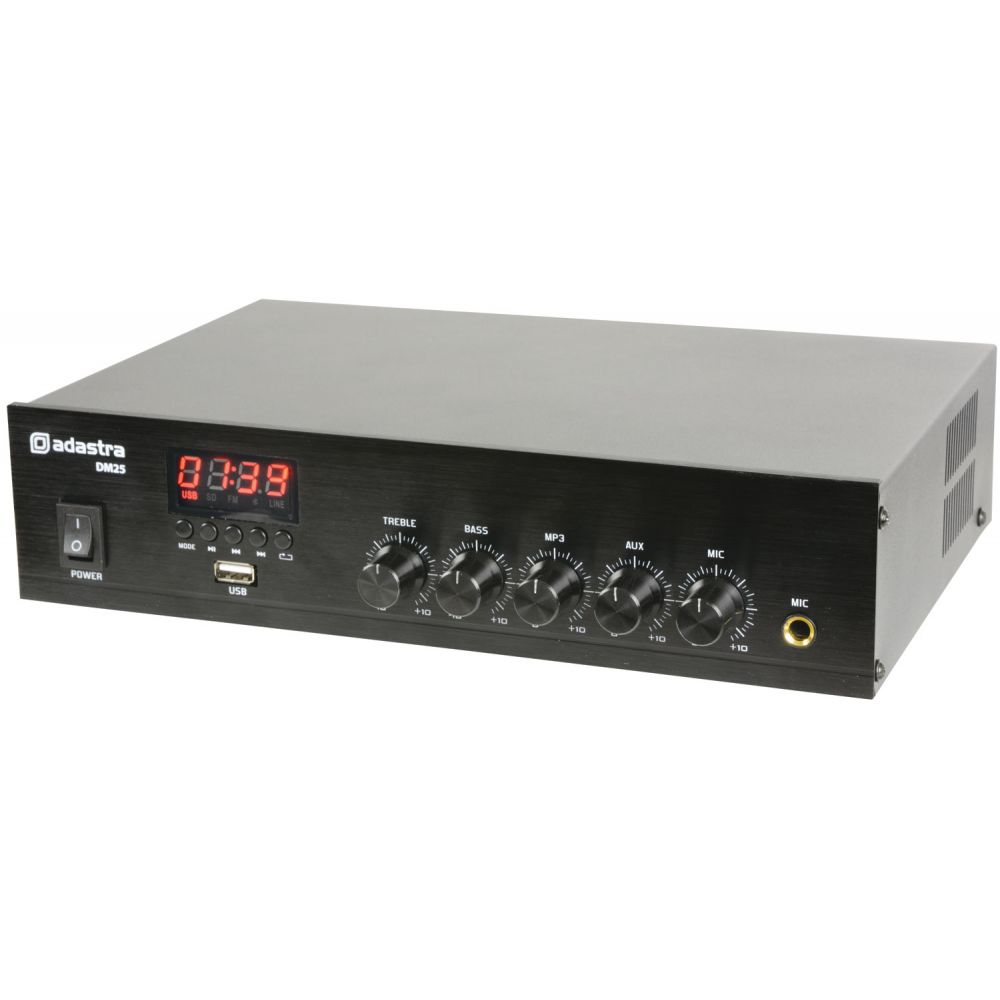

100V line mixer-amp with digital amplifier in a compact housing. Onboard audio player accepts USB media for digital audio or can be tuned to FM radio stations. In Bluetooth mode, a smart phone or tablet may be paired with the DM25 for wireless audio playback. Mono output to either 100V line or 4-16 ohms speaker load is connected via spring terminals on the rear panel. All-in-one solution for small sound installations.
PRODUCT FEATURES:
Built-in USB/FM media playerBluetooth connectivitySuitable for 100V or 4-16 Ohm speakers
SPECIFICATION:
Power supply 230Vac, 50Hz (IEC)Audio source USB player, FM tuner and Bluetooth receiverBluetooth version 2.1Controls Treble, Bass, MP3, Aux, MicMicrophone input 6.3mm jack (unbalanced)Line input 2 x RCA (summed to mono)Line output 2 x RCASpeaker outputs COM, 100V and 4-16 Ohms (spring terminals)Antenna connection Spring terminalDimensions 280 x 205 x 67mmOutput power 25WrmsWeight 1.34kg
BOX CONTAINS:
DM-series 100V mixer-a
