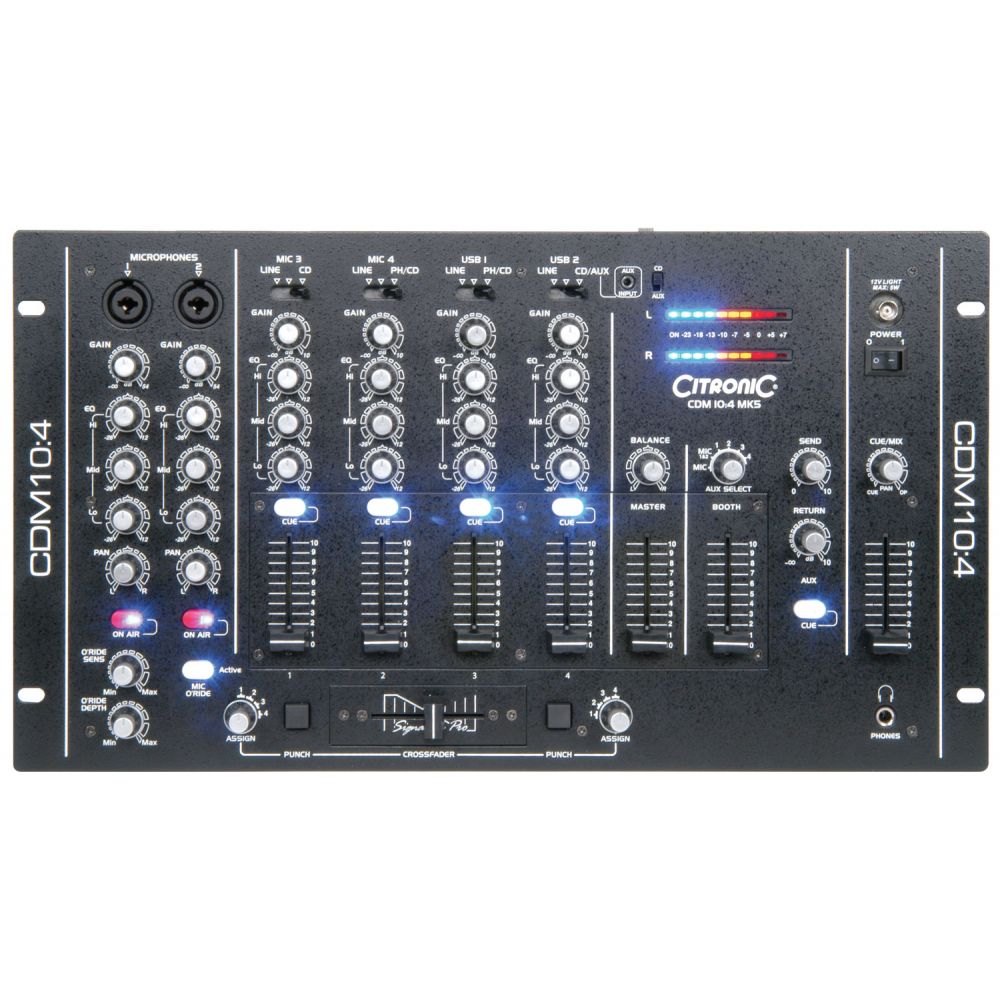

Citronic CDM10:4 has always been a popular choice of the working DJ, with a simple layout packed with all needed features.
This latest version comes with connectivity through USB and an additional auxiliary input on the top panel for external sound sources such as MP3 player.
PRODUCT FEATURES:
4 channel, 17 inputs2 dedicated balanced mic channels with 3-band EQMic override facility for DJ mics2 auxiliary mics on channels 1 and 28 CD/line inputs (2 switchable to phono)Top panel 3.5mm aux input for MP3 player2 USB input/outputs for channels 3 and 4Fully assignable VCA crossfaderPunch buttonsHotswap channel fadersIndividual gain control per channel3-band EQ with total killFully assignable send and return10-bar LED monitor display12V BNC light socket (light not supplied, 173.501 recommended)Booth outputBalanced XLR and unbalanced RCA outputsRotatable back panel for convenient installation19″ (6U) rack mountable
SPECIFICATION:
Power supply 220-230Vac, 50/60Hz (IEC)Fuse rating T250mA (240V) / T500mA (110V)Cutout 440 x 250mmEqualiser : bass +12dB, -26dB @ 100HzEqualiser : mid range +12dB, -26dB @ 800HzEqualiser : treble +12dB, -26dB @ 9kHzHeadphone output 112mV @ 32 OhmsInput : line 195mV, 50k OhmsInput : mic 1.5mV, 2k OhmsInput : phono 4mV, 47k OhmsSignal to noise ratio : line >87dBSignal to noise ratio : mic 68dBSignal to noise ratio : phono 73dBDimensions 483 x 266 x 80mm (6U)Weight 5kg
